“Harnessing Nature’s Breezes: The Power of Natural Ventilation in Buildings”

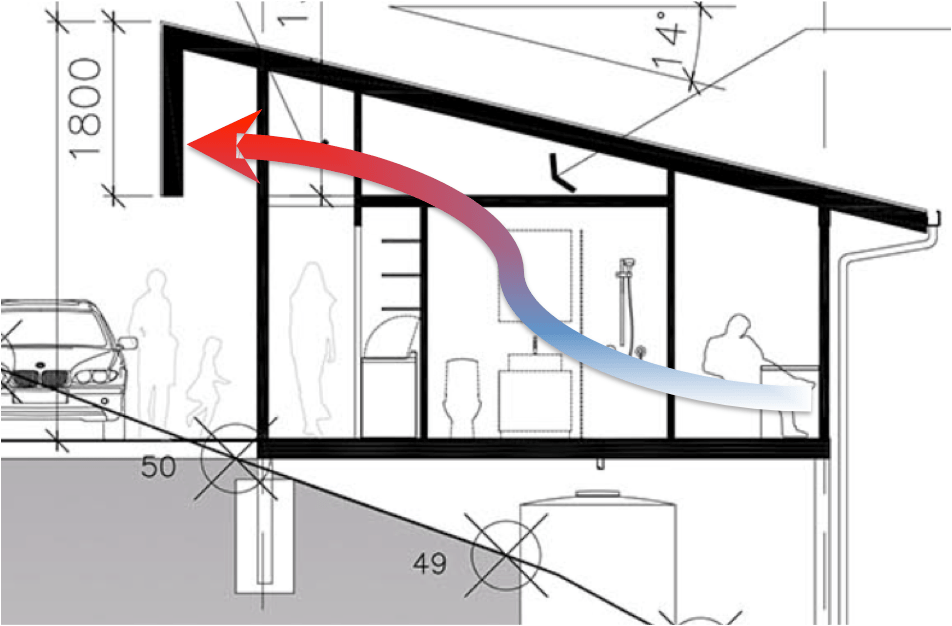

Passive stack ventilation is a natural method of ventilating buildings without the need for mechanical systems. It works by utilizing the buoyancy of warm air to create a flow of fresh air into and out of a building. This is achieved through strategically placed vents and ducts that allow warm air to rise and escape, drawing in cooler air from outside.
Windcatchers are traditional architectural features used in hot climates to capture and direct cool breezes into buildings. They consist of towers or chimneys with openings that face into the prevailing wind direction, creating a pressure difference that draws in fresh air into the building.
Trombe walls are thick masonry walls typically made of concrete or stone that absorb heat during the day and release it slowly at night, providing passive heating and cooling benefits. These walls have vents at the top and bottom which allow for natural convection currents to circulate air between them, regulating temperature inside.
Earth tubes are underground pipes that take advantage of stable soil temperatures to pre-condition incoming fresh air. As outdoor air passes through these tubes, it gets cooled in summer and warmed in winter before entering the building.
Solar chimneys use solar energy to create an upward airflow within a building. A tall chimney-like structure absorbs sunlight which heats up the surrounding air causing it to rise naturally, pulling fresh air from below.
Green roofs not only provide insulation but also contribute towards natural ventilation. Vegetation on rooftops acts as an insulating layer while absorbing heat from sunlight. The movement of this heated rooftop causes buoyancy-driven airflow as it rises above cooler ambient temperatures.
Cross-ventilation is a technique commonly used in narrow buildings where windows on opposite sides are opened simultaneously allowing for fresh breezes to pass through.
High-rise buildings often require specific ventilation strategies due to their height and limited access to natural airflow. Techniques such as stack effect ventilation using vertical shafts can help draw out stale indoor air while bringing in fresh outdoor air at lower levels.
Natural ventilation in underground spaces can be achieved through the use of vents and ducts that connect to the surface, allowing for air exchange between indoor and outdoor environments.
In tropical climates, natural ventilation is essential for cooling buildings. Techniques such as designing with open floor plans, high ceilings, and cross-ventilation help promote airflow and reduce the reliance on mechanical cooling systems.
Arid climates require careful consideration of passive cooling techniques. Strategies like using thick walls with thermal mass to store coolness during the night and release it during the day can help maintain comfortable indoor temperatures.
Cold climates present challenges for natural ventilation due to heat loss. However, techniques like incorporating Trombe walls or earth tubes can still provide some passive heating benefits while ensuring adequate fresh air supply.
Historic buildings often have restrictions that limit modifications to their original structures. Natural ventilation options such as opening windows strategically or using windcatchers can respect these limitations while improving indoor air quality.
Tiny homes and small spaces require efficient use of available space for effective natural ventilation. Techniques like using operable skylights, wall vents, or compact windcatchers can ensure proper airflow without compromising living areas.
Industrial buildings often have large volumes of space that need ventilating efficiently. Natural ventilation techniques involving louvers, vents, or roof monitors can help remove hot air and replace it with cooler outside air in an energy-efficient manner.
Multi-story residential complexes benefit from stack effect ventilation where higher floors are naturally vented by lower floors’ exhausts creating a continuous flow of fresh air throughout the building.
Remote or off-grid living requires self-sustaining solutions for natural ventilation. Windcatchers, solar chimneys, green roofs along with appropriate window placement allow remote dwellings to harness nature’s resources effectively.
Ventilation systems utilizing geothermal energy take advantage of stable underground temperatures to precondition incoming fresh air before distributing it throughout a building complex via ductwork systems.
Passive cooling techniques through natural ventilation involve optimizing building orientation and design to take advantage of prevailing winds, shading devices, and proper insulation to reduce heat gain and promote airflow.
In conclusion, natural ventilation offers a variety of techniques for different climates, building types, and living situations. By utilizing these strategies effectively, we can reduce our reliance on mechanical cooling systems while creating healthier and more sustainable living environments.
