“Transforming Urban Spaces: Exploring the Types and Benefits of Green Roof Systems”
Types of green roof systems
Green roofs, also known as living roofs or eco-roofs, are becoming increasingly popular as a sustainable solution for buildings. They offer numerous environmental benefits and can transform urban spaces into vibrant, green areas. There are several types of green roof systems available, each with its own unique characteristics and advantages.
1. Extensive Green Roofs:
Extensive green roofs are lightweight and have a shallow substrate layer (4-6 inches) that supports low-growing vegetation such as sedums, grasses, and mosses. These roofs require minimal maintenance and irrigation since they are designed to mimic natural ecosystems that thrive in harsh conditions. They provide insulation to the building below but do not support large plants or trees.
2. Intensive Green Roofs:
Intensive green roofs have a thicker substrate layer (6-24 inches) that can support a wider variety of plant species including small shrubs, perennials, and even small trees. These roofs require more maintenance due to their deeper soil layers and may need regular irrigation depending on the plant selection.
3. Semi-intensive Green Roofs:
Semi-intensive green roofs combine elements of both extensive and intensive systems by using a medium-depth substrate layer (4-8 inches). This type allows for a greater variety of plant choices while still maintaining some aspects of low-maintenance design.

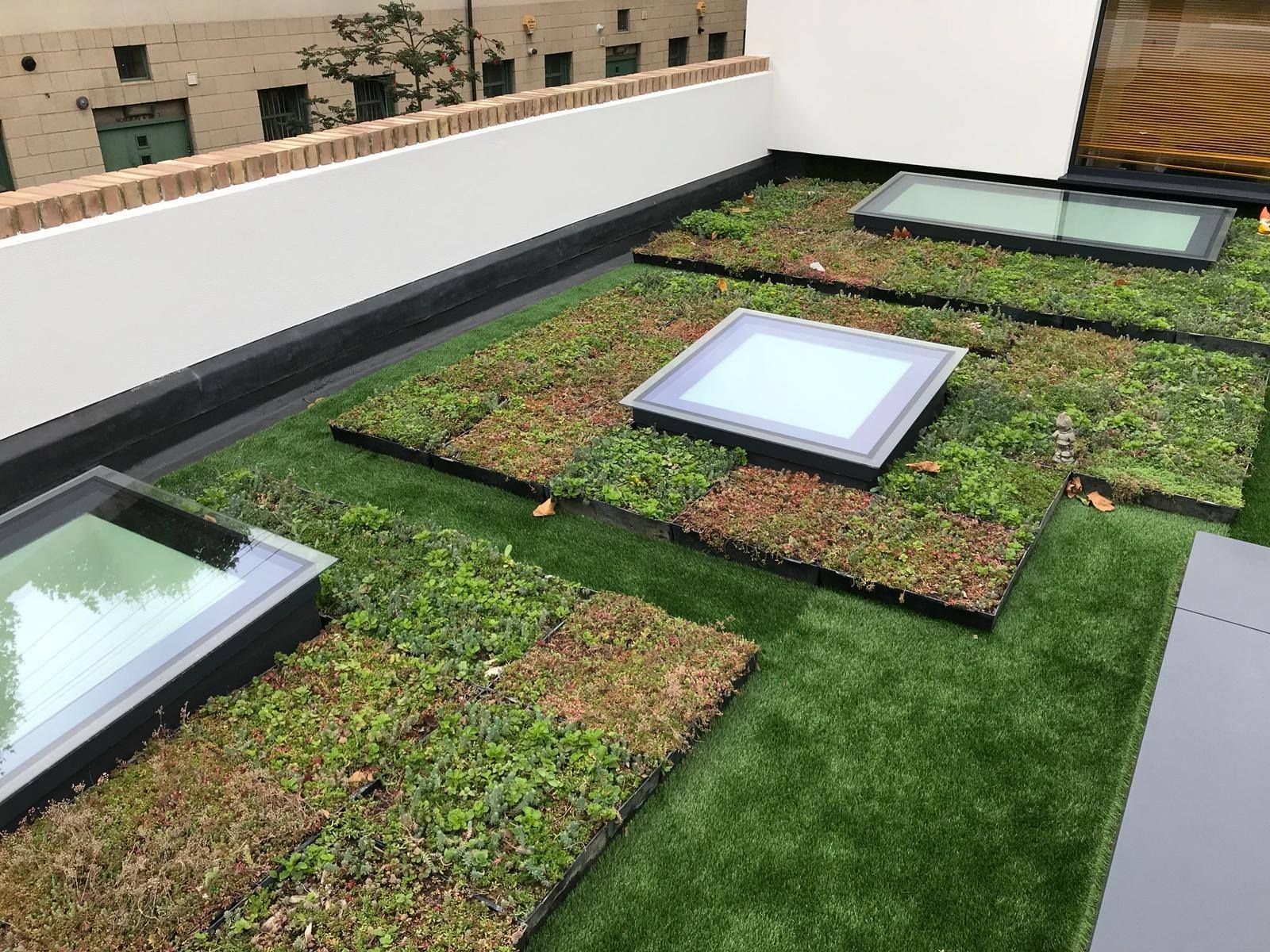

4. Modular Green Roofs:
Modular green roof systems consist of pre-planted modules that can be easily installed on existing rooftops without any major structural modifications. These systems offer flexibility in terms of installation and maintenance since individual modules can be replaced or rearranged as needed.
5. Tray Green Roofs:
Similar to modular systems, tray green roof systems use trays filled with growing media that can be fitted together like puzzle pieces to cover the entire rooftop area. Tray systems allow for easy installation and maintenance while providing good stormwater management capabilities.
Benefits of green roofs for energy efficiency
Green roofs offer numerous energy efficiency benefits that can help reduce the environmental impact of buildings and improve overall sustainability. Here are some key advantages:
1. Insulation: Green roofs provide natural insulation, reducing heat transfer between the building and the environment. This helps to regulate indoor temperatures, reducing the need for air conditioning in summer and heating in winter.
2. Energy savings: By reducing heat transfer, green roofs can significantly lower energy consumption for cooling and heating purposes. Studies have shown that green roofs can reduce peak energy demand by up to 75% during hot summer months.
3. Reduced urban heat island effect: Urban areas tend to be warmer than surrounding rural areas due to the abundance of concrete and asphalt surfaces that absorb heat from the sun. Green roofs help mitigate this effect by providing a cooler microclimate through evapotranspiration and shading.
4. Stormwater management: Green roofs absorb rainwater, reducing stormwater runoff and alleviating pressure on drainage systems during heavy rainfall events. This helps prevent flooding and improves water quality by filtering pollutants before they enter water bodies.
5. Extended roof lifespan: The vegetation layer of a green roof acts as a protective barrier against UV radiation, extreme temperature fluctuations, and physical damage from hail or debris, extending the lifespan of roofing materials underneath.
6. Noise reduction: The dense vegetation layer of green roofs absorbs sound waves, acting as a natural noise barrier that reduces outdoor noise pollution for occupants inside buildings.
Green roof maintenance and care tips
While green roofs require less maintenance compared to traditional gardens, regular upkeep is still necessary to ensure their long-term health and functionality:
1. Irrigation: Newly installed green roofs may require regular watering until plants become established (typically within the first year). However, once established, extensive green roof systems usually do not require additional irrigation except during prolonged dry periods or droughts.
2. Weed control: Regular weeding is essential to prevent invasive plant species from taking over the green roof. Manual removal or spot treatments with organic herbicides can help keep weeds in check.
3. Fertilization: Green roofs generally do not require fertilizers, as they rely on nutrient-rich substrates and natural sources of organic matter. However, if plants show signs of nutrient deficiencies or poor growth, a slow-release organic fertilizer specifically designed for green roofs can be applied.
4. Pruning and trimming: Intensive and semi-intensive green roofs may require occasional pruning to maintain plant health and prevent overcrowding. Dead or damaged vegetation should be removed promptly to avoid disease transmission.
5. Pest management: Monitor for pests such as aphids, caterpillars, or snails that may damage plant foliage. Use integrated pest management (IPM) strategies such as introducing beneficial insects or applying eco-friendly pest control products when necessary.
6. Inspection and maintenance of drainage system: Regularly inspect gutters, downspouts, drains, and other components of the roof’s drainage system to ensure proper functioning and prevent clogs or leaks.
7. Annual soil testing: Periodic soil testing can provide valuable information about the pH levels and nutrient content of the substrate, allowing adjustments to be made if necessary.
Choosing the right plants for a green roof
The selection of plants is crucial when designing a green roof system since it determines its overall aesthetics, functionality, and ability to withstand environmental conditions:
1. Native species: Choose native plant species whenever possible as they are adapted to local climate conditions and require less maintenance compared to non-native species. Native plants also support local wildlife by providing habitat and food sources.
2. Drought-tolerant species: Select plants that have high drought tolerance since extensive green roofs typically receive minimal irrigation once established.
3. Low-growing vegetation: Opt for low-growing plant varieties such as sedums (stonecrop), grasses, mosses, or herbs for extensive systems due to their adaptability to shallow substrate layers and low maintenance requirements.
4. Plant diversity: Aim for a diverse mix of plant species to enhance biodiversity, attract pollinators, and increase resilience against pests or diseases.
5. Consider microclimates: Evaluate the specific microclimate conditions on the rooftop such as sun exposure, wind patterns, and temperature fluctuations. Choose plants that can thrive in these conditions to ensure their long-term survival.
6. Consult with experts: Seek advice from horticulturists, landscape architects, or green roof professionals who have experience in plant selection for green roofs. They can provide valuable insights into suitable plant choices based on local climate and environmental factors.
DIY green roof installation guide
Installing a green roof yourself is possible with careful planning and proper execution. Here’s a step-by-step guide to help you get started:
1. Structural assessment:
Before installing a green roof, conduct a structural assessment of your building’s rooftop to ensure it can support the added weight of the vegetation layer and drainage system. Consult with a structural engineer if needed.
2. Waterproofing:
Ensure that your roof has proper waterproofing in place before proceeding with green roof installation. This prevents water leakage into the building structure.
3. Drainage system:
Design an appropriate drainage system to manage excess rainwater runoff from the green roof effectively. This may include installing gutters, downspouts, drainpipes, or other components depending on your specific needs.
4. Substrate layer:
Choose an appropriate growing medium (substrate) for your green roof based on its intended use (extensive or intensive). Extensive systems typically require lightweight substrates composed of materials like expanded clay aggregate or lightweight pumice while intensive systems require deeper soil mixes containing organic matter such as compost or peat moss.
5.Plant selection and planting:
Select suitable plants based on local climate conditions and functional requirements (e.g., drought-tolerance). Lay out plants according to your desired design, ensuring proper spacing and arrangement. Planting can be done directly into the substrate or using pre-grown vegetation mats for faster coverage.
6. Irrigation:
For extensive green roofs, irrigation may not be necessary once plants are established. However, if needed, consider installing an automated drip irrigation system with a rain sensor to conserve water and avoid overwatering.
7. Maintenance plan:
Develop a maintenance plan that includes regular inspection, weeding, pruning, fertilization (if necessary), and drainage system maintenance. Consider periodic soil testing to monitor nutrient levels and pH balance.
8. Safety precautions:
When working at heights during green roof installation or maintenance, always prioritize safety measures such as using appropriate personal protective equipment (PPE), securing ladders or scaffolding properly, and following local regulations.
Green roofs as a solution for urban heat island effect
The urban heat island effect refers to the phenomenon where cities experience significantly higher temperatures compared to surrounding rural areas due to excessive concrete and asphalt surfaces absorbing heat from the sun. Green roofs offer an effective solution for mitigating this effect by providing shade and evaporative cooling:
1. Temperature reduction: The vegetation cover of green roofs helps reduce ambient air temperature through transpiration (the process of plants releasing moisture into the atmosphere). This reduces the overall heat load on buildings and surrounding areas.
2. Evaporative cooling: As plants release moisture through transpiration, it creates a cooling effect similar to natural evaporation in forests or meadows. This cools down surface temperatures on rooftops while increasing humidity levels in the immediate vicinity.
3.Shading: Green roofs provide shading for buildings, reducing direct solar radiation onto rooftops which further contributes to lower surface temperatures.
4.Energy savings: By lowering outdoor air temperatures near buildings with green roofs, energy consumption for air conditioning can be significantly reduced during hot summer months.
5.Improved microclimate: The presence of green spaces within urban areas helps create microclimates that are more pleasant and comfortable for residents, workers, and visitors. Green roofs serve as small-scale contributors to these improved microclimates.
Rainwater harvesting on green roofs
One of the key benefits of green roofs is their ability to retain and utilize rainwater effectively. Rainwater harvesting on green roofs involves capturing, storing, and reusing rainwater for various purposes such as irrigation or toilet flushing. Here’s how it works:
1. Drainage system design: Green roof systems should be designed with a robust drainage system in place that collects excess rainwater runoff from the rooftop surface.
2. Storage capacity: Determine the required storage capacity based on your water needs and local rainfall patterns. This can be achieved through the installation of underground cisterns or above-ground tanks connected to the drainage system.
3.Filtration: Install appropriate filtration systems to remove debris, sediments, and contaminants before storing rainwater in storage tanks. This ensures good water quality for subsequent uses.
4.Water distribution: Connect stored rainwater to a separate distribution system that supplies non-potable water outlets such as toilets or irrigation systems within the building or surrounding landscape.
5.Maintenance: Regularly inspect and clean filters, gutters, downspouts, and other components of the rainwater harvesting system to prevent blockages or contamination issues.
6.Regulations: Check local regulations regarding rainwater harvesting practices as some regions may have specific guidelines or permits required for implementation.
Green roofs and biodiversity conservation
Green roofs provide valuable habitat opportunities in urban areas where natural spaces are limited. They contribute significantly to biodiversity conservation by supporting plant diversity and attracting various forms of wildlife:
1.Plant diversity: By incorporating a diverse range of plant species into green roof designs, they provide food sources (nectar, pollen) and shelter for insects such as bees, butterflies, ladybugs, etc., which are essential pollinators and contribute to ecosystem health.
2. Bird habitat: Green roofs can serve as nesting sites for birds, particularly ground-nesting species that prefer low-growing vegetation found on extensive green roofs. The availability of insects attracted by the plant cover also provides a food source for birds.
3. Invertebrate habitat: Green roofs support a wide range of invertebrates such as spiders, beetles, worms, and snails that play important roles in nutrient cycling and soil health.
4. Amphibians and reptiles: Depending on their design and location, green roofs can provide suitable conditions for amphibians like frogs or newts or reptiles like lizards who seek refuge in vegetated areas.
5.Bat roosting opportunities: By incorporating features such as bat boxes or specific plant species attractive to bats (e.g., night-scented flowers), green roofs can provide roosting opportunities for these nocturnal mammals.
6.Monitoring and conservation efforts: Collaborate with local conservation organizations or universities to monitor biodiversity on green roofs and participate in citizen science initiatives aimed at studying urban ecology.
Case studies of successful green roof projects
Numerous successful green roof projects around the world demonstrate the benefits and feasibility of implementing this technology:
1.The Chicago City Hall:
The Chicago City Hall has one of the most iconic green roofs worldwide. Installed in 2000, it covers approximately 20,000 square feet with over 150 species of plants. The project showcases how green roofs can improve energy efficiency while enhancing aesthetics within an urban setting.
2.Nanyang Technological University (NTU) Singapore:
NTU’s School of Art Design & Media building features an extensive rooftop garden spanning nearly five acres – one of Asia’s largest rooftop gardens. This project exemplifies how large-scale greening initiatives can transform campuses into sustainable landscapes while providing additional recreational spaces for students and staff members.
3.Vancouver Convention Centre West Building:
This LEED Platinum-certified convention center in Vancouver, Canada, boasts a six-acre living roof that supports over 400,000 native plants and grasses. The green roof helps reduce heat island effect and stormwater runoff while providing a visually stunning landscape for visitors.
4.Ford Dearborn Truck Plant:
The Ford Dearborn Truck Plant in Michigan has incorporated extensive green roofs on its truck assembly building as part of its commitment to sustainability. These green roofs help regulate indoor temperatures, reducing energy consumption, and provide additional insulation for the building structure.
5.Hotel Milano Scala Milan:
This hotel in the heart of Milan showcases an intensive rooftop garden that not only provides insulation but also serves as an outdoor space for guests to relax and enjoy panoramic views of the city. It demonstrates how green roofs can be integrated into commercial buildings to enhance customer experience while contributing to environmental sustainability.
Green roofs and stormwater management
Stormwater management is a critical aspect of urban planning as excessive runoff can overwhelm drainage systems and contribute to water pollution. Green roofs offer several benefits in managing stormwater effectively:
1.Stormwater retention: Green roofs absorb rainwater during storm events like sponges, reducing the volume of runoff entering local sewer systems or streams. This prevents flooding downstream and lessens the burden on traditional drainage infrastructure.
2.Water quality improvement: As rainwater passes through soil layers and vegetation on green roofs, it gets naturally filtered, removing pollutants such as heavy metals or sediments before reaching water bodies. This improves overall water quality downstream.
3.Delayed peak flow: By retaining rainwater temporarily within their substrate layers, green roofs slow down the rate at which water enters drainage systems during intense rainfall events. This helps prevent sudden surges that could lead to flash floods.
4.Evapotranspiration: Plants on green roofs release moisture into the atmosphere through transpiration – a process that occurs simultaneously with evaporation from exposed surfaces. Evapotranspiration rates on green roofs are typically higher than on traditional rooftops, helping to reduce overall stormwater runoff.
5.Reduced heat island effect: Green roofs contribute to a cooler microclimate within urban areas, reducing the temperature of rainwater runoff. Cooler water temperatures can benefit aquatic ecosystems downstream by supporting more favorable conditions for fish and other organisms.
Green roof design considerations for different climates
Designing green roofs that thrive in specific climatic conditions is essential for their long-term success. Consider the following factors when planning a green roof based on your region’s climate:
1.Sun exposure: Evaluate the amount of sunlight your rooftop receives throughout the day. In hot climates with intense sun exposure, consider using plants that tolerate full sun and have high drought tolerance. In cooler regions, choose shade-tolerant plants if your building has limited access to direct sunlight.
2.Wind patterns: Assess prevailing wind directions and speeds as strong winds can dry out vegetation quickly. Select wind-resistant plant species or install windbreaks (e.g., hedges) around the perimeter of the rooftop to protect against excessive evaporation.
3.Temperature extremes: Determine the range of temperature fluctuations experienced in your region throughout different seasons. Choose plant species that can withstand both hot summers and cold winters while maintaining optimal growth conditions.
4.Rainfall patterns: Consider average annual rainfall amounts as well as seasonal distribution when selecting plant species and designing drainage systems. Drought-tolerant plants may be suitable for arid regions with low precipitation, while water-loving species could thrive in areas with high rainfall.
5.Snow load capacity: If you live in an area prone to heavy snowfall, ensure that your green roof design accounts for additional weight loads during winter months. Consult with a structural engineer to assess snow load capacity and make necessary modifications if required.
6.Irrigation needs: Depending on local rainfall patterns, determine whether supplementary irrigation will be needed during periods of extended dryness or drought. This is particularly important for extensive green roofs that rely on natural rainfall once established.
The role of green roofs in reducing air pollution
Air pollution has detrimental effects on human health and the environment. Green roofs can play a significant role in reducing air pollution levels by acting as filters and sinks for various pollutants:
1.Particulate matter (PM) capture: Vegetation on green roofs effectively captures airborne particles such as dust, soot, or pollen, reducing their presence in the atmosphere. Fine particulate matter (PM2.5) poses significant health risks when inhaled, making green roofs an effective mitigation strategy.
2.NOx absorption: Nitrogen oxides (NOx), mainly generated by vehicle emissions and industrial activities, contribute to smog formation and respiratory problems. Green roof vegetation absorbs NOx through leaf stomata – tiny openings that facilitate gas exchange during photosynthesis.
3.Volatile organic compounds (VOCs): VOCs are chemicals released from various sources like paints, cleaning products, or furniture that can have adverse health effects when present at high concentrations indoors or outdoors. Plant leaves absorb VOCs and break them down through a process called phytoremediation.
4.Greenhouse gas reduction: Green roofs aid in mitigating climate change by sequestering carbon dioxide (CO2), one of the major greenhouse gases responsible for global warming. Plants absorb CO2 during photosynthesis while releasing oxygen into the atmosphere.
5
