Designing a Rainwater Harvesting System: A Case Study in Sustainable Living
Introduction:
As the need for sustainable living and eco-friendly lifestyles becomes increasingly important, finding innovative ways to conserve water has become an essential practice. One such method gaining popularity is rainwater harvesting. This case study explores the process of designing a rainwater harvesting system that maximizes efficiency and minimizes environmental impact.
Understanding Rainwater Harvesting:
Rainwater harvesting involves collecting and storing rainwater for future use. It provides an alternative source of water, reducing reliance on municipal supplies or groundwater extraction. By capturing rainfall, we can effectively harness a free resource while minimizing strain on existing water sources.
Planning Phase:
1. Assess Water Needs:
The first step in designing a rainwater harvesting system is understanding your household’s water requirements. Consider factors like daily consumption, gardening needs, and other non-potable uses. This evaluation will help determine the size of the storage tanks needed.
2. Analyze Rainfall Patterns:
To maximize efficiency, it’s crucial to analyze local rainfall patterns over an extended period – ideally several years’ worth of data if available. Understanding how much rainfall you can expect helps determine the appropriate collection area (roof) size and storage capacity.
3. Calculate Collection Area:
Next, calculate the roof’s surface area that will be used for collecting rainwater by measuring its length and width accurately. Multiply these dimensions to find its square footage or square meters.
4. Determine Storage Capacity:
Based on your assessed water needs and average annual rainfall data, estimate how many gallons or liters you should store throughout dry periods or when there is limited precipitation.

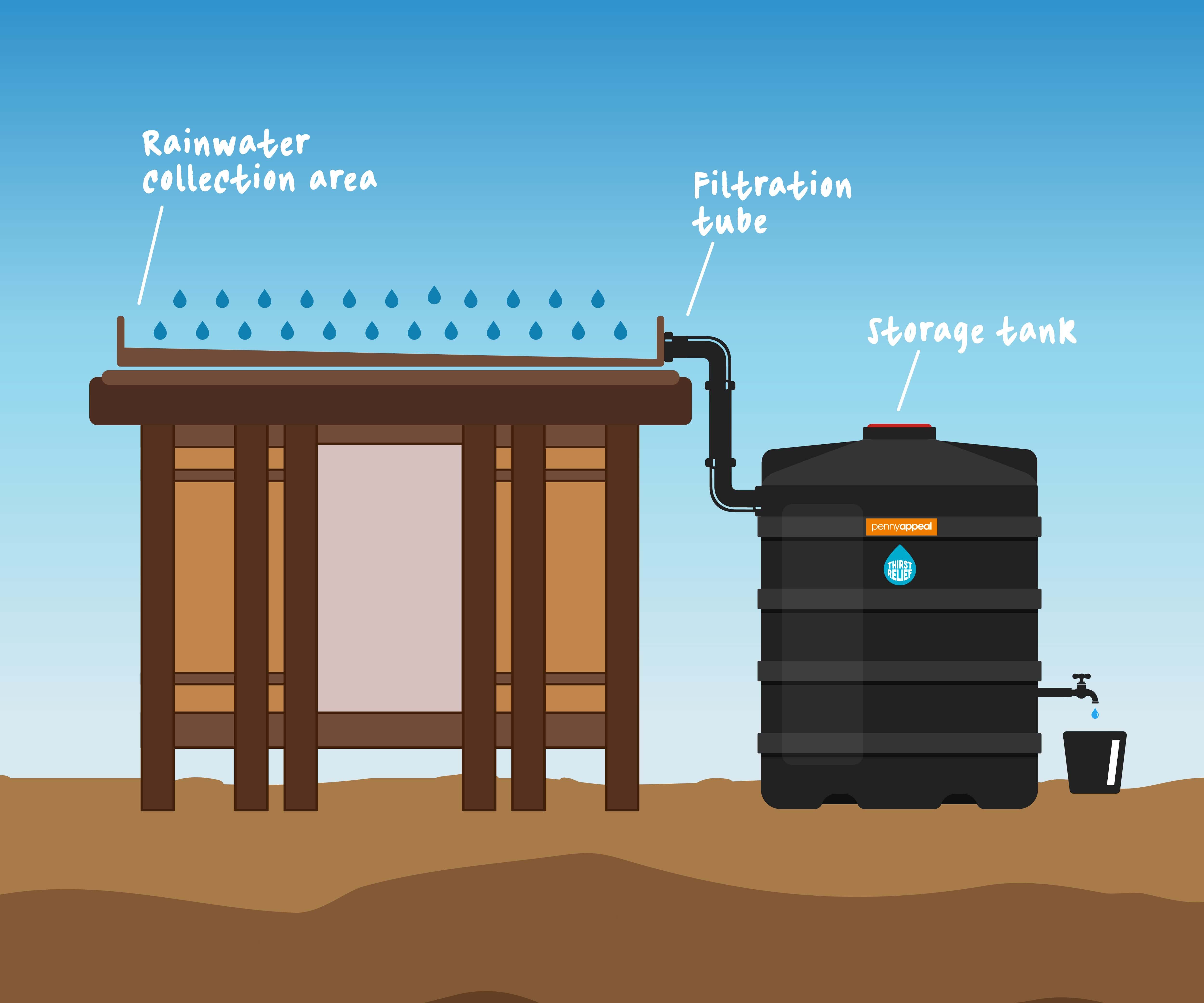

System Components:
1. Roof Catchment System:
The roof catchment system consists of gutters installed along the edges of the roof to collect rainwater as it flows downward during precipitation events. The gutters direct this collected water into downspouts leading towards filtration systems or directly into storage tanks.
2. Filtration System:
Rainwater can contain various impurities, such as dust, leaves, and debris. A filtration system helps ensure the harvested water is clean and safe for use. Filters can range from simple mesh screens to more advanced sediment filters or self-cleaning systems.
3. Storage Tanks:
Storage tanks are an integral part of rainwater harvesting systems as they store collected water for later use. Tanks come in various sizes, materials (such as plastic or concrete), and designs (above-ground or underground). Choose a tank that suits your needs while considering available space and budget constraints.
4. Overflow Mechanism:
To prevent overflow during heavy rainfall events when storage tanks reach capacity, an overflow mechanism should be incorporated into the system design. This ensures excess rainwater is diverted away from the collection area without causing flooding or damage.
System Design Considerations:
1. Gravity Feed vs. Pumping Systems:
Consider whether you prefer a gravity-fed system – where stored rainwater flows through pipes using natural pressure – or if you will require a pump to distribute water throughout your household.
2. Water Treatment Options:
Evaluate whether additional treatment methods like chlorination, UV sterilization, or carbon filtration are necessary based on planned uses of harvested water (e.g., potable vs. non-potable).
3. Maintenance Requirements:
Keep in mind that regular maintenance tasks, such as cleaning gutters, filters, and inspecting tank integrity for leaks or cracks, are essential to ensure optimal functioning of the rainwater harvesting system over time.
Case Study Example: The Johnson Residence
The Johnson family resides in an urban area with limited access to groundwater sources due to environmental concerns surrounding excessive extraction rates by neighboring communities.
Their rainwater harvesting system was designed based on careful planning and consideration of local conditions:
1. Assessing Water Needs:
The Johnsons calculated their average daily consumption to be 100 gallons (378 liters) per day for all household purposes.
2. Analyzing Rainfall Patterns:
Using historical rainfall data, the Johnsons determined that their region receives an average annual precipitation of 40 inches (1016 mm).
3. Calculating Collection Area:
Their roof measures 1,500 square feet (139 square meters), providing ample space for rainwater collection.
4. Determining Storage Capacity:
To meet their needs during prolonged dry periods or minimal rainfall, the Johnsons decided to install two 1,000-gallon (3,785 liters) storage tanks.
Conclusion:
Designing a rainwater harvesting system requires careful consideration of water needs, local climate conditions, and individual preferences. By following a systematic approach and incorporating appropriate components and design considerations, individuals can create sustainable solutions that reduce water consumption while preserving precious natural resources. The case study example of the Johnson residence serves as inspiration for others looking to embark on similar eco-friendly endeavors in their own homes.
